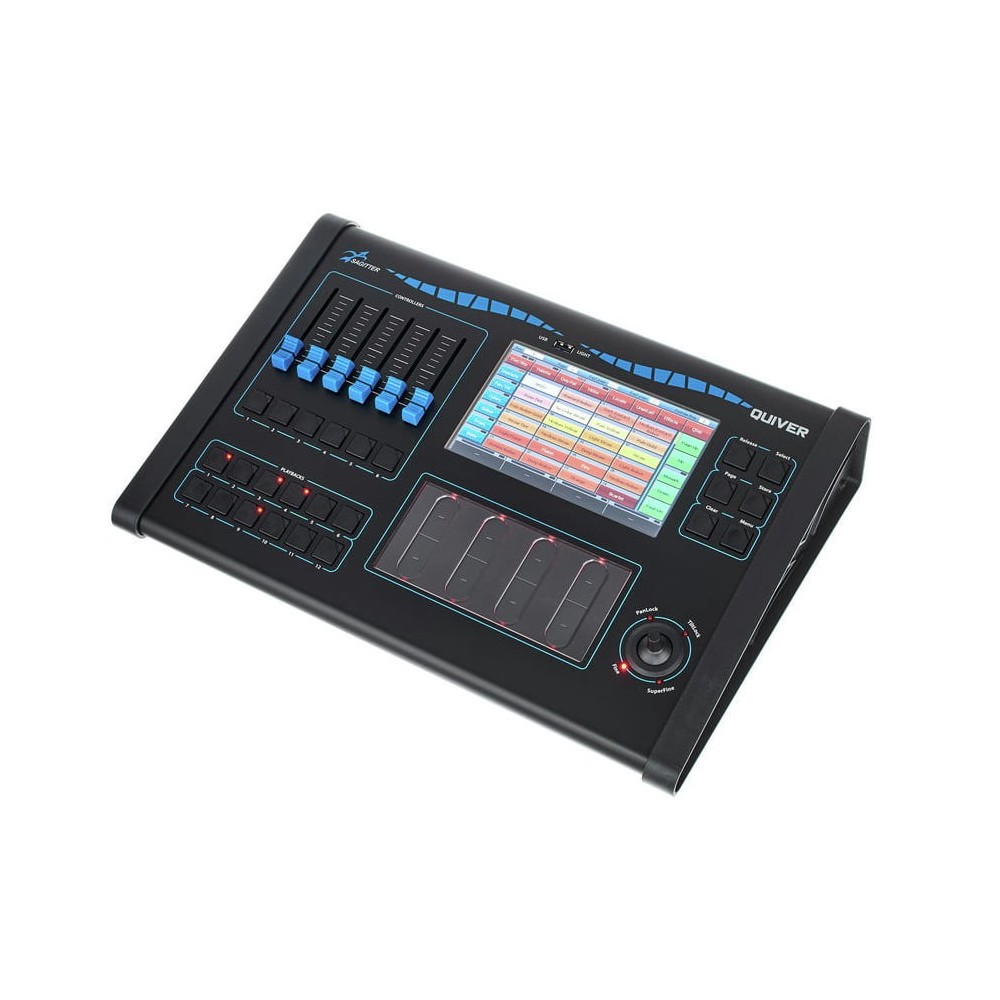

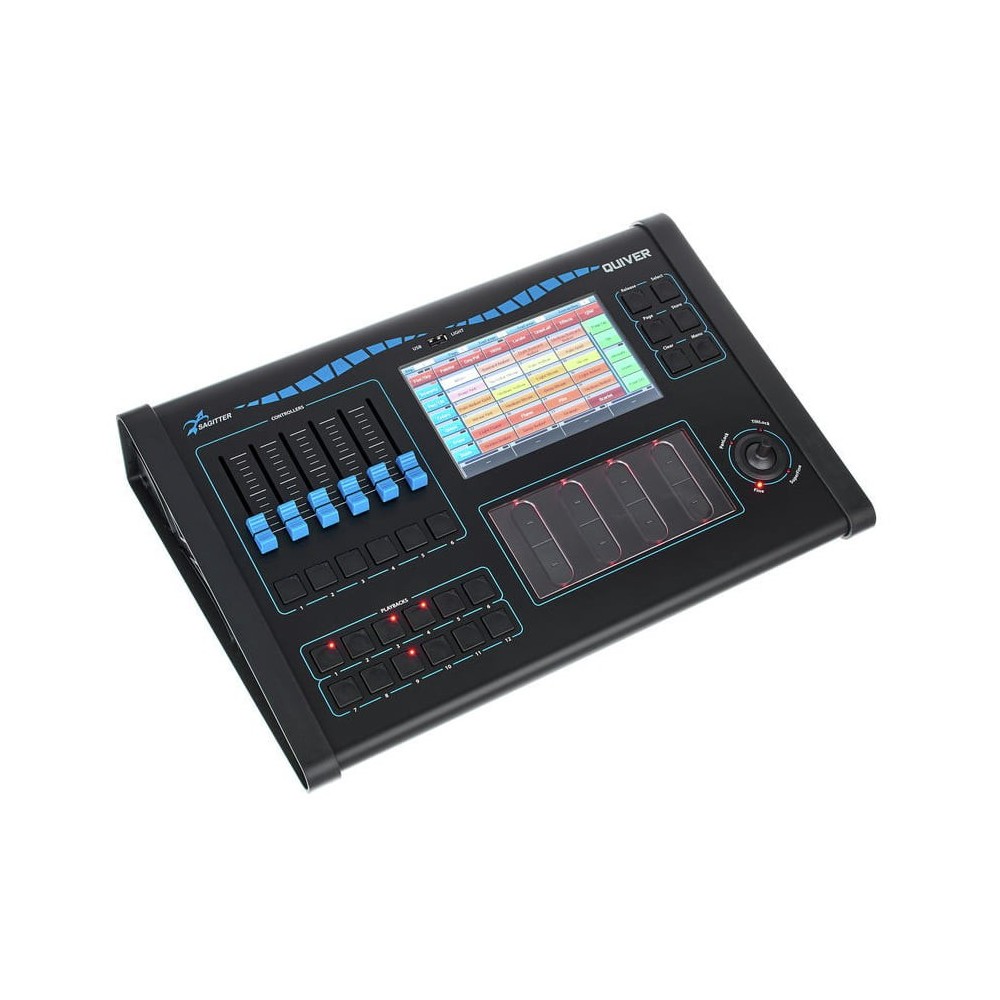

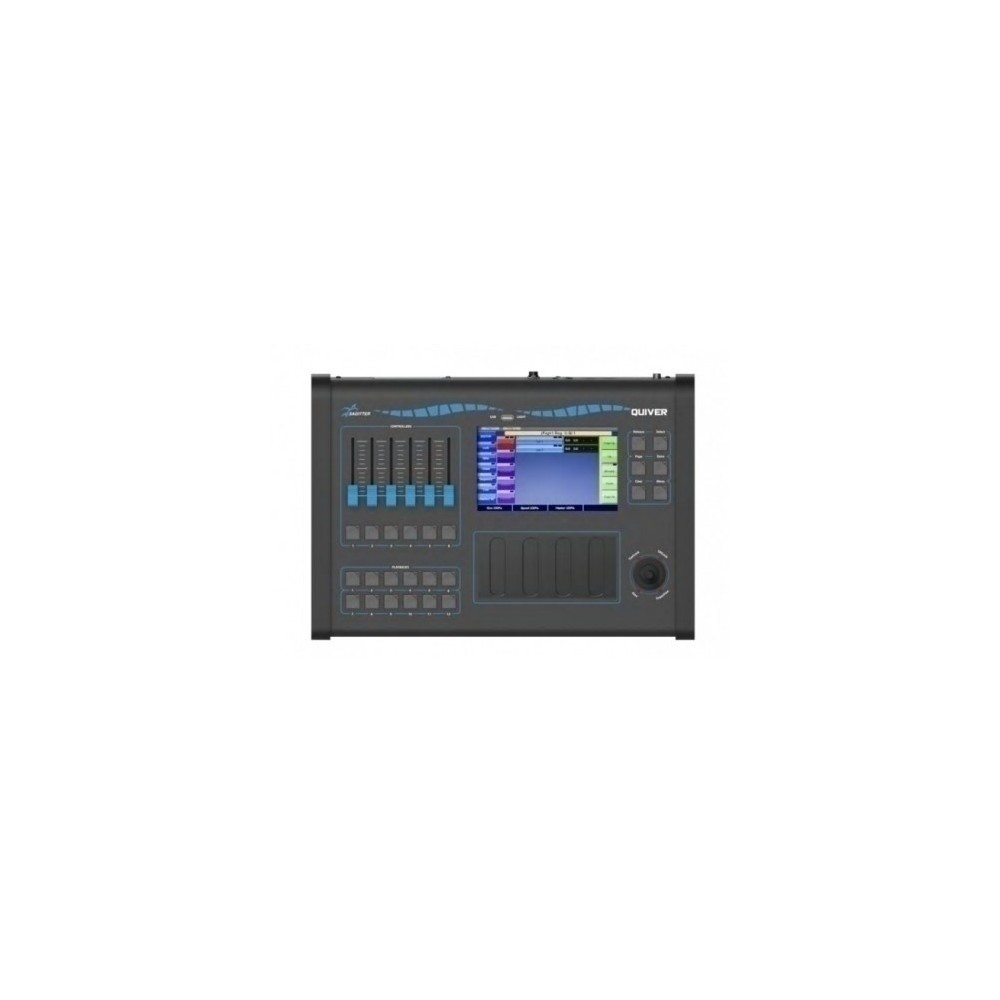

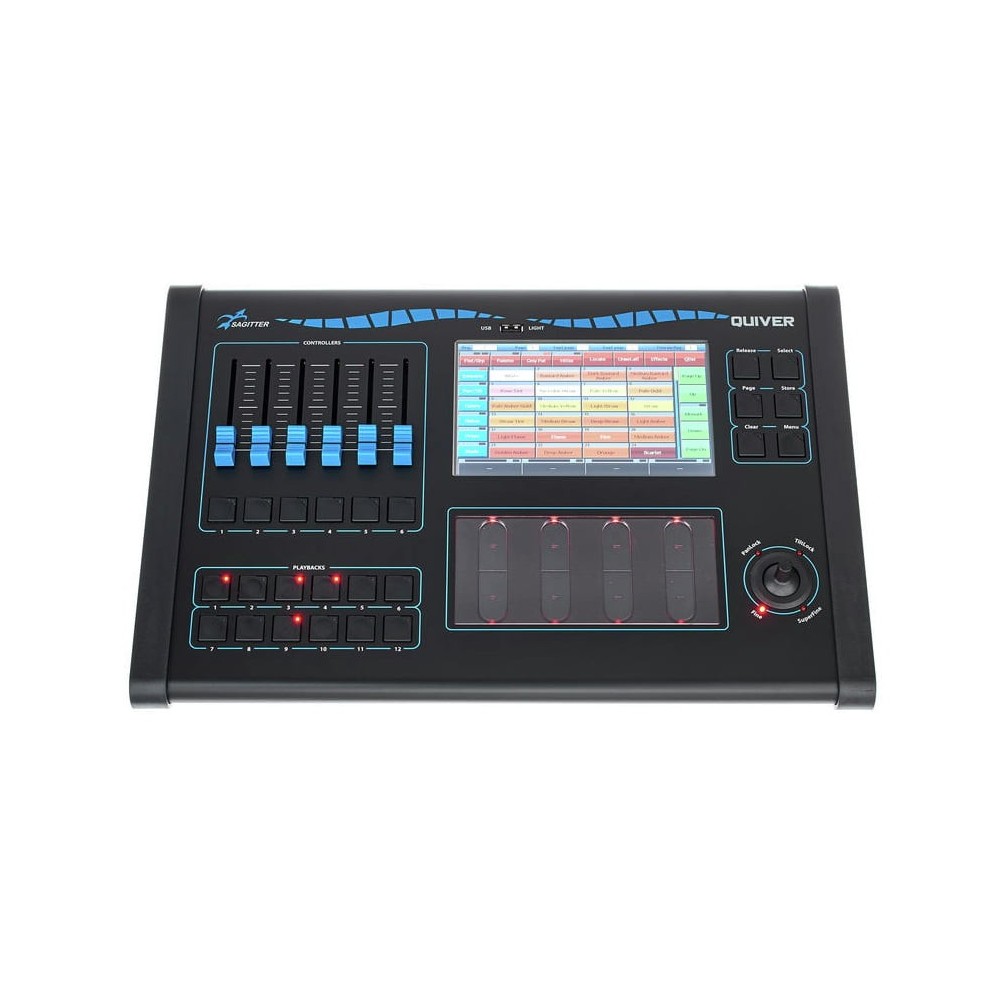

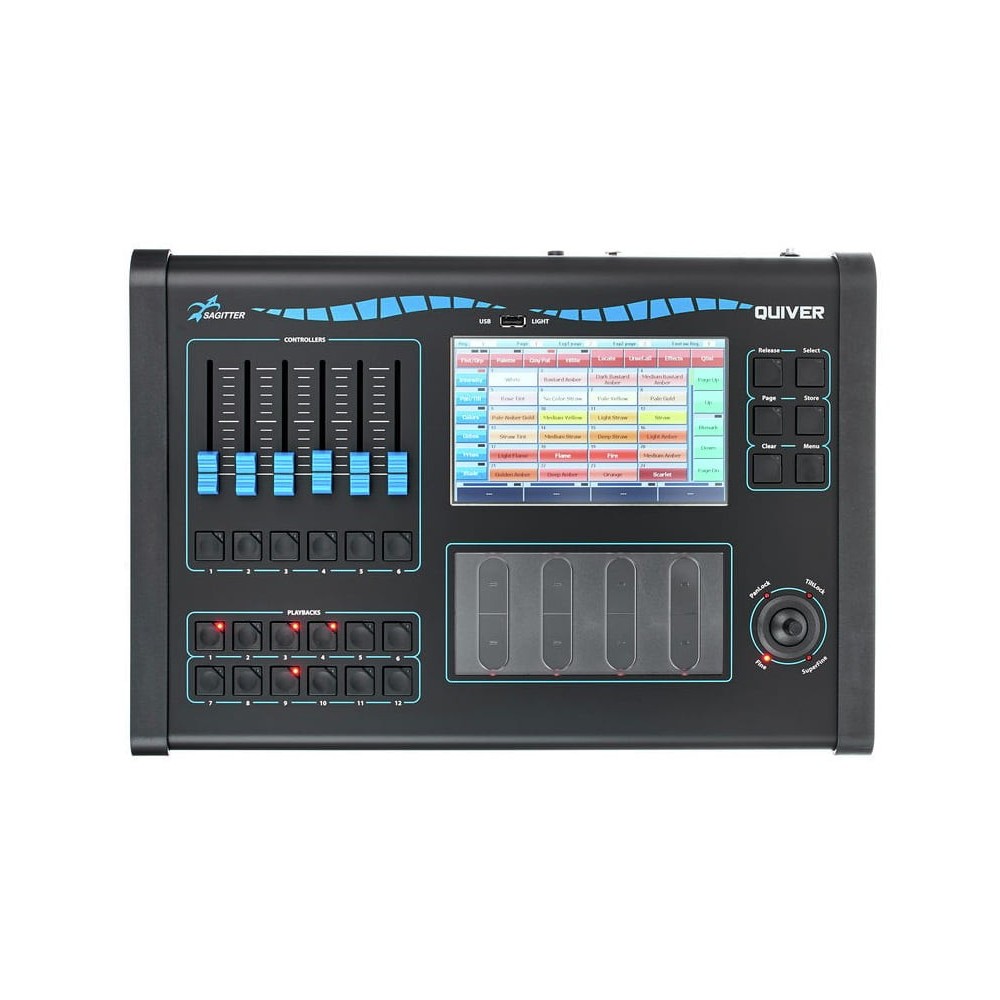

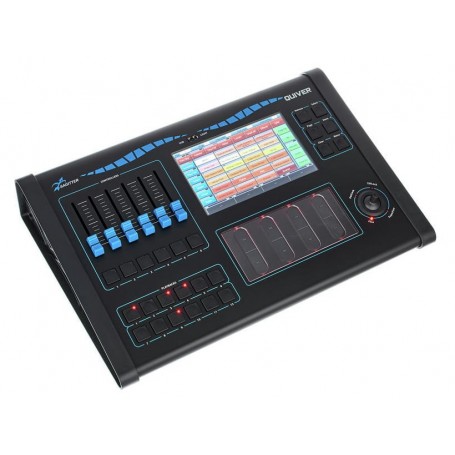

Sagitter Quiver to konsoleta oświetleniowa pracująca w trybie stand alone, która może być dodatkowo rozbudowana o dwa dedykowane extendery Quiver X, oferujące dodatkową ilość enkoderów służących do programowania. Jedną z największych zalet konsolety Quiver jest pełna konfigurowalność. Konsoleta oferuje m.in.:
7-calowy wyświetlacz dotykowy,
6 enkoderów,
6 przycisków wyzwalania szybkich funkcji,
12 banków, by zapisać złożone sceny,
a dodatkowo 4 enkodery dotykowe i multi-jog, którym wysterujemy urządzenia inteligentne takie jak skanery i ruchome głowy. Z poziomu wyświetlacza możemy łatwo zaprogramować wszystkie enkodery i przyciski.
Quiver oferuje ponadto wyjście DMX Out pracujące w standardzie 512 kanałów, a także złącza EXP1, EXP2 dla extenderów, które zapewnią dodatkowe kanały (konsoleta + dwa extendery dają nawet 1536 kanałów).
Technical Specifications Quiver
Controls

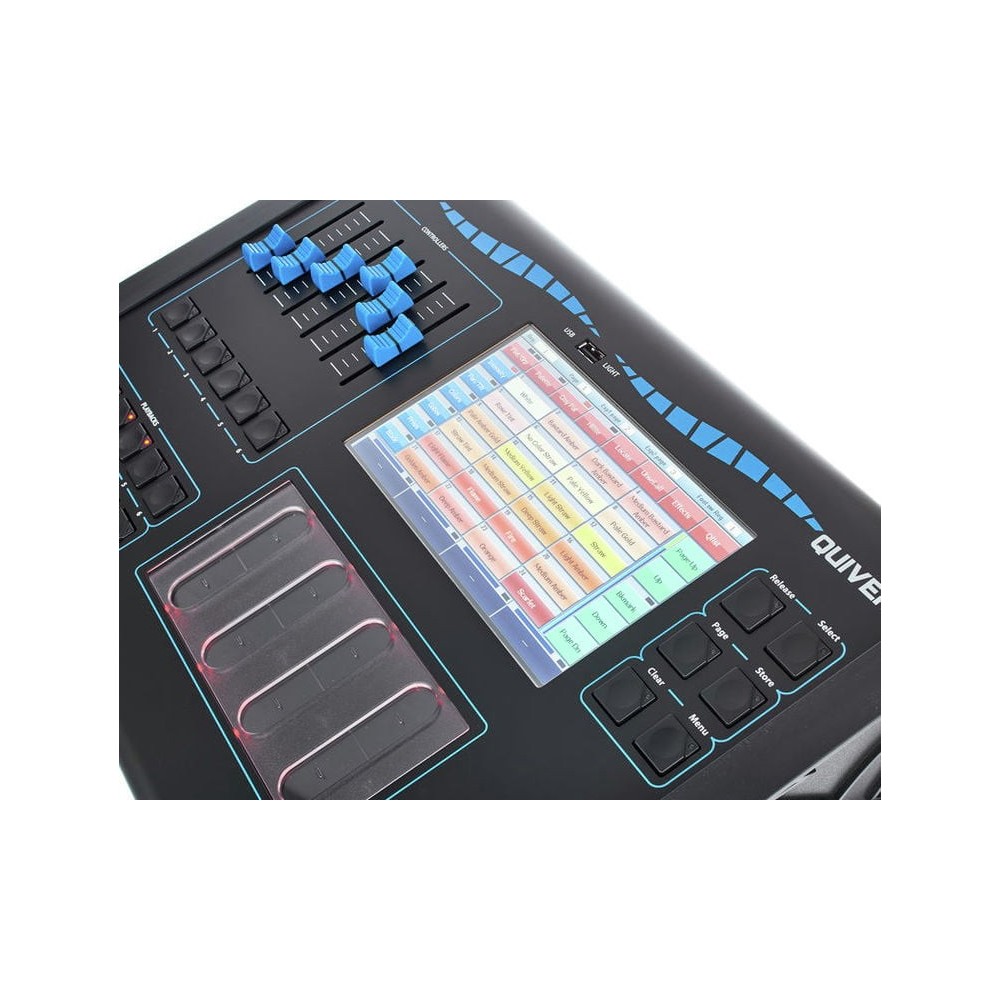

Colour Display touch-screen TFT LCD 7”
6 control keys for editor

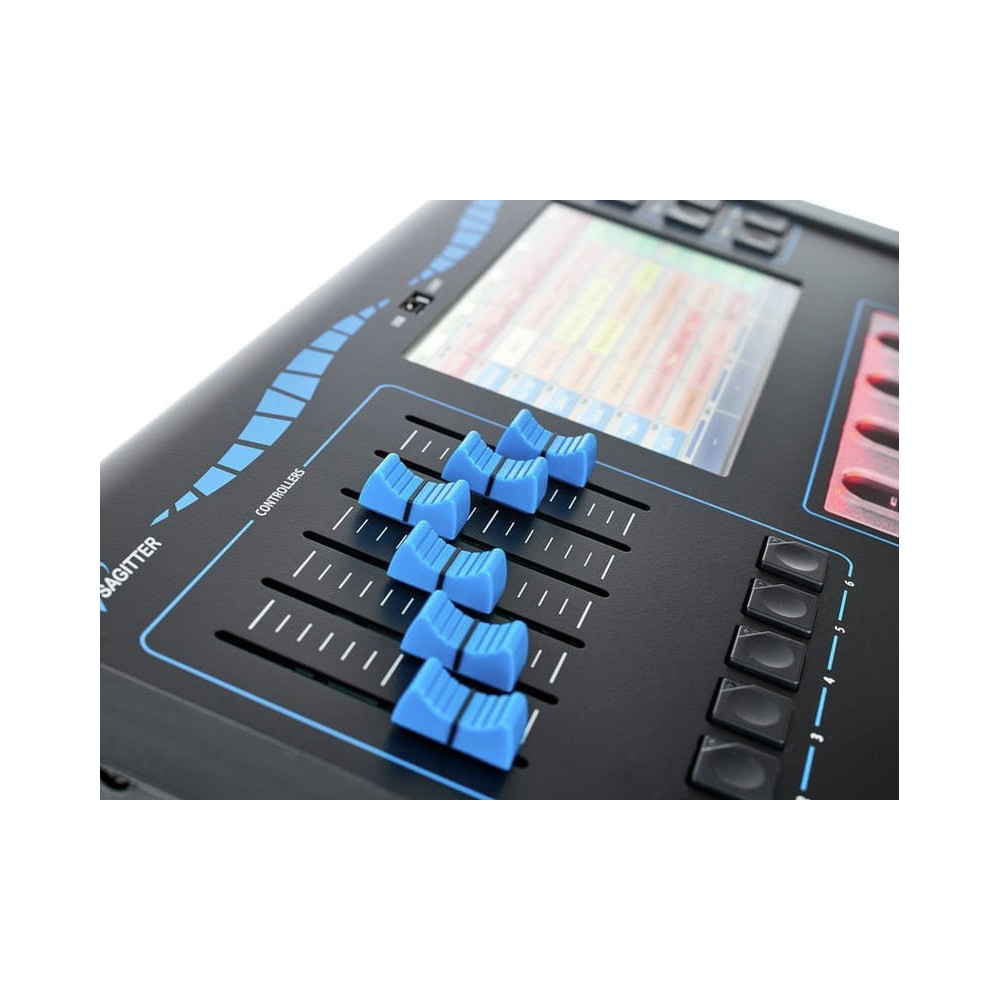

6 configurable slider as playback, master group
6 configurable key as play, flash, DBO

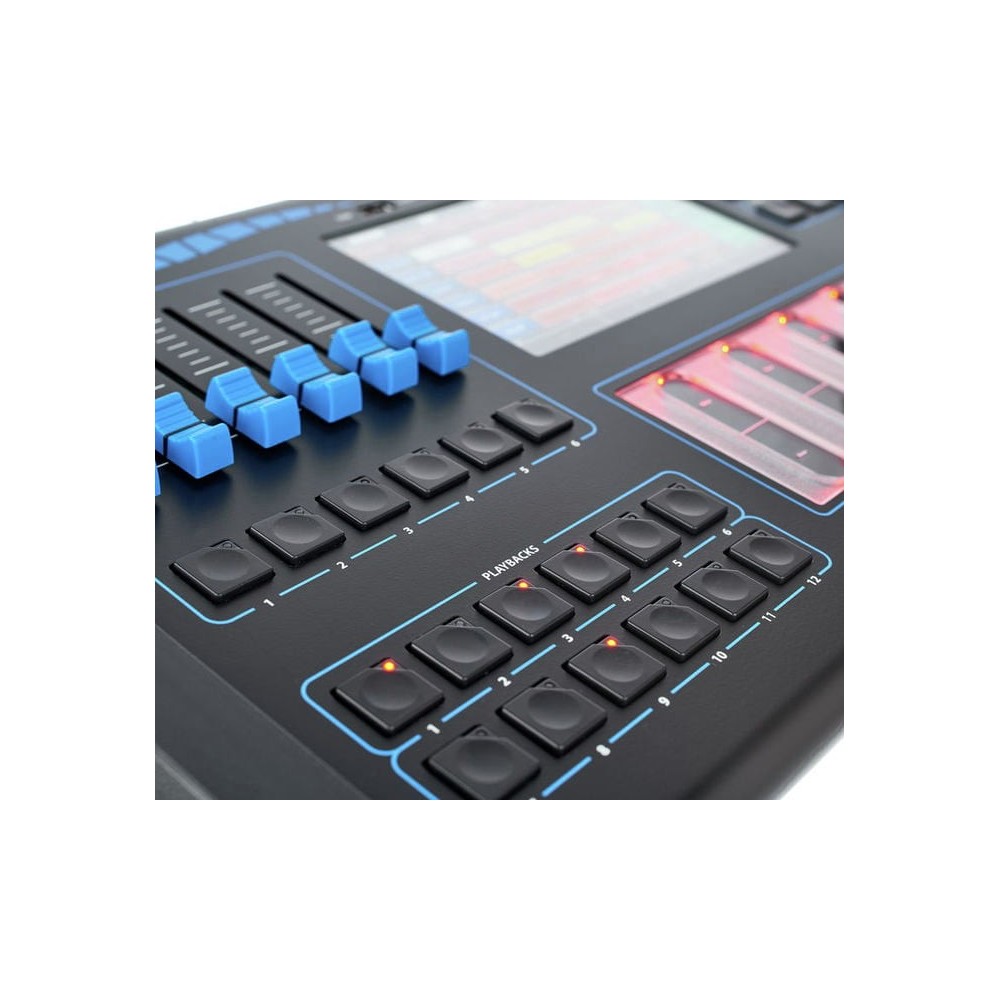

12 keys for direct access to playback and CUES

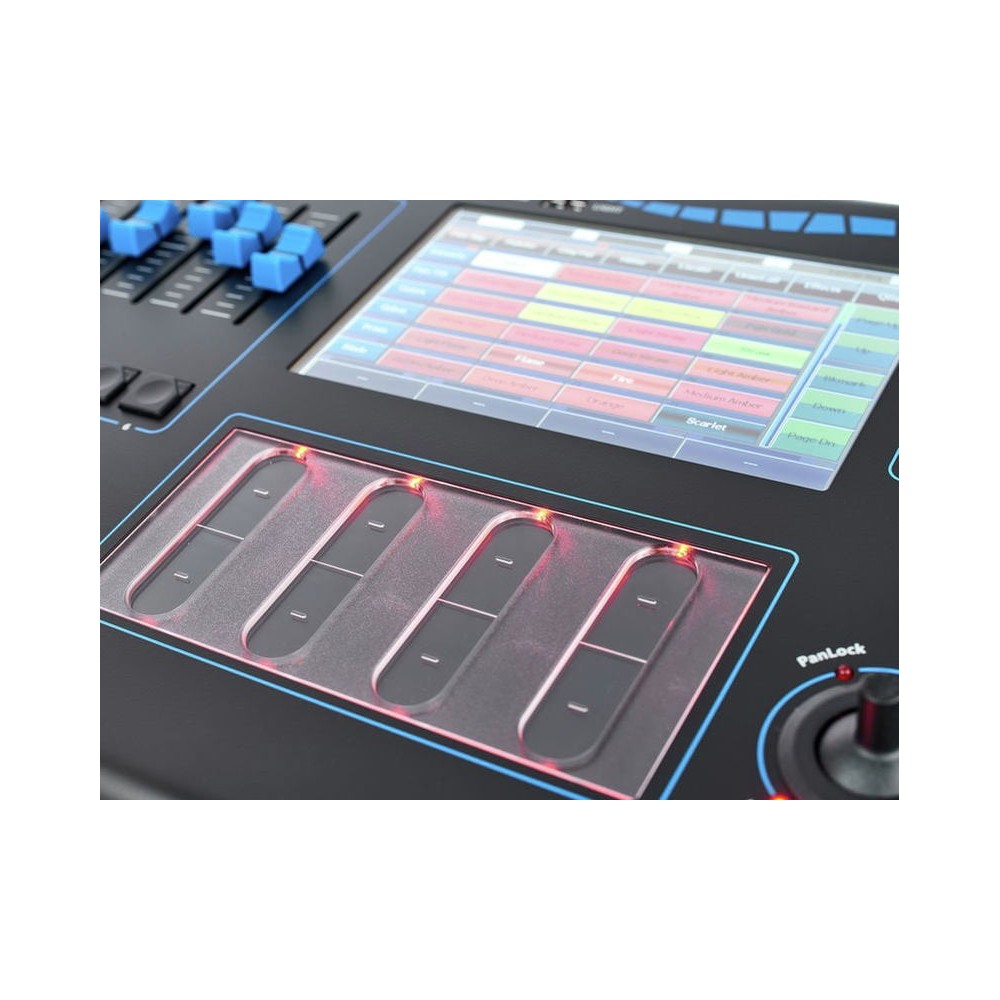

4 touch-fader for the control of the attributes during the programming and control of the effects and during playback and manual use

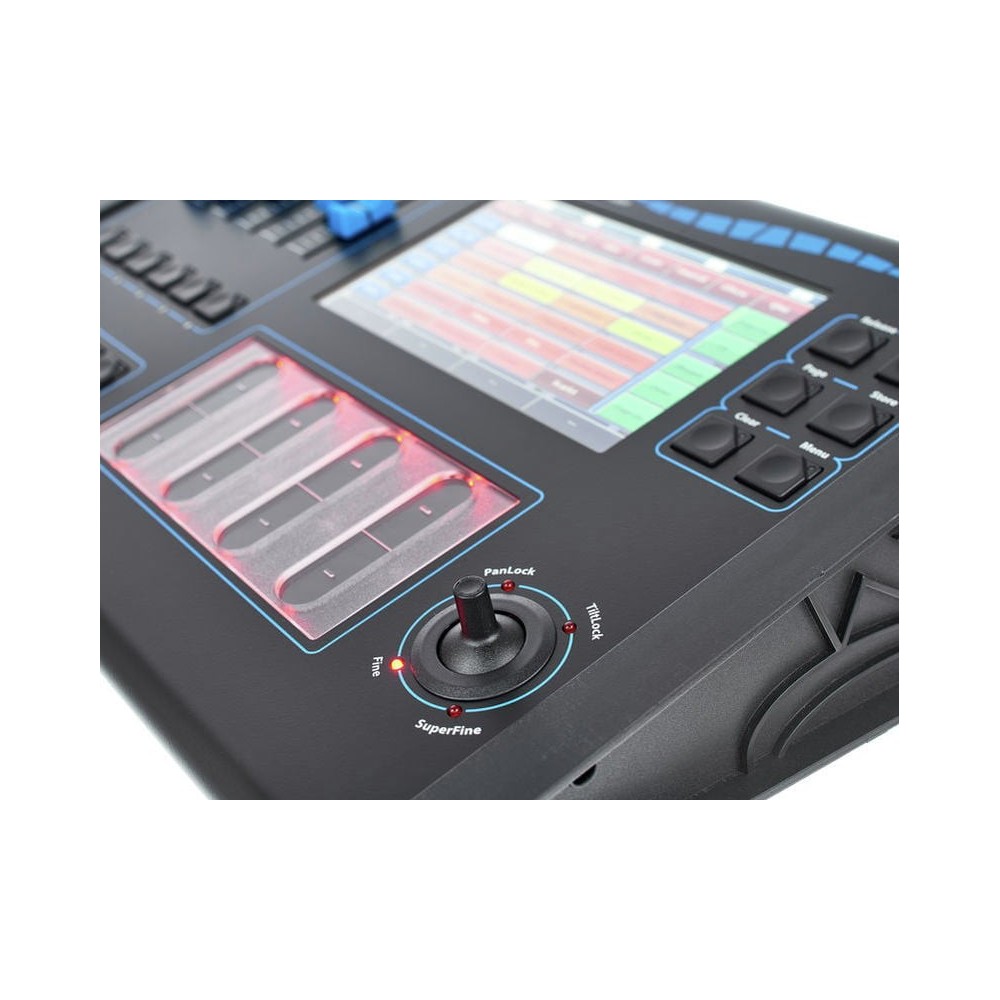

Joystick for PAN and TILT movement control with lock and fine/super fine keys
Description
Effective graphic interface able to easily manage programming and playback for a maximum of 144 cue-list organize in 12 pages each having a maximum of 999 cues
512 channel for each single universe DMX for the control of dimmer and/or intelligent projector, available simultaneously on XLR connector 3 poles
Up to1536 channel with Quiver Expand
Up to 36 Cue-list run concurrently (with 2 Expand connected))
“Shape engine” customizable and applicable to different functions (PAN&TILT - DIM - COLOR - GOBO - BLADE)
Up to 6 different families of "palettes" programmable for a flexible and easy control of intelligent projectors
Up to 999 Cues for each playback
Library "personalities" upgradeable, creating fixture via software for PC (included)
"Palettes" Chris/Gam/Lee and Rosco pre-program usable on all machines with mixing colors RGB or CMY
Maximum Number of storable cues to show: 999
RDM ready (Prepared for enlargement of technology)
Wireless ready (Designed for the insertion of a wireless transmitter sold separately)
External Power Supply: 100-240V 50-60Hz
USB Pendrive (included)

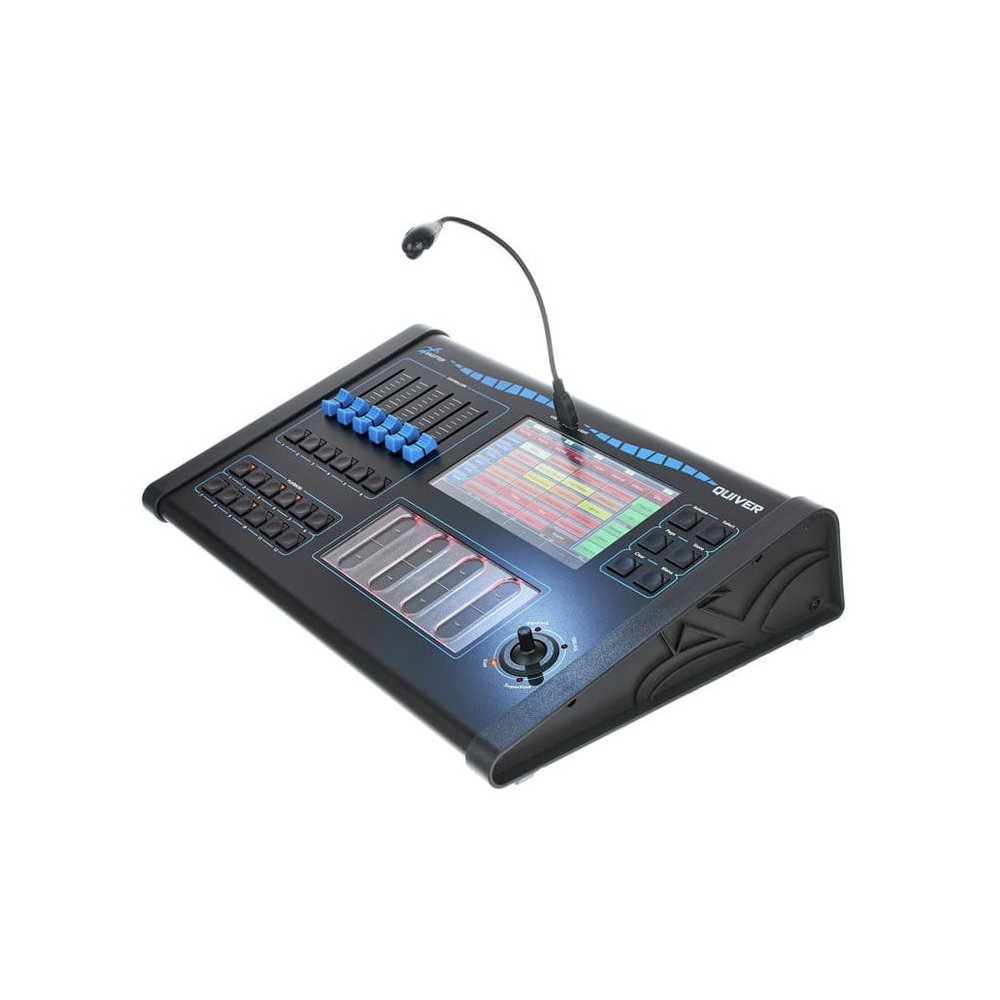

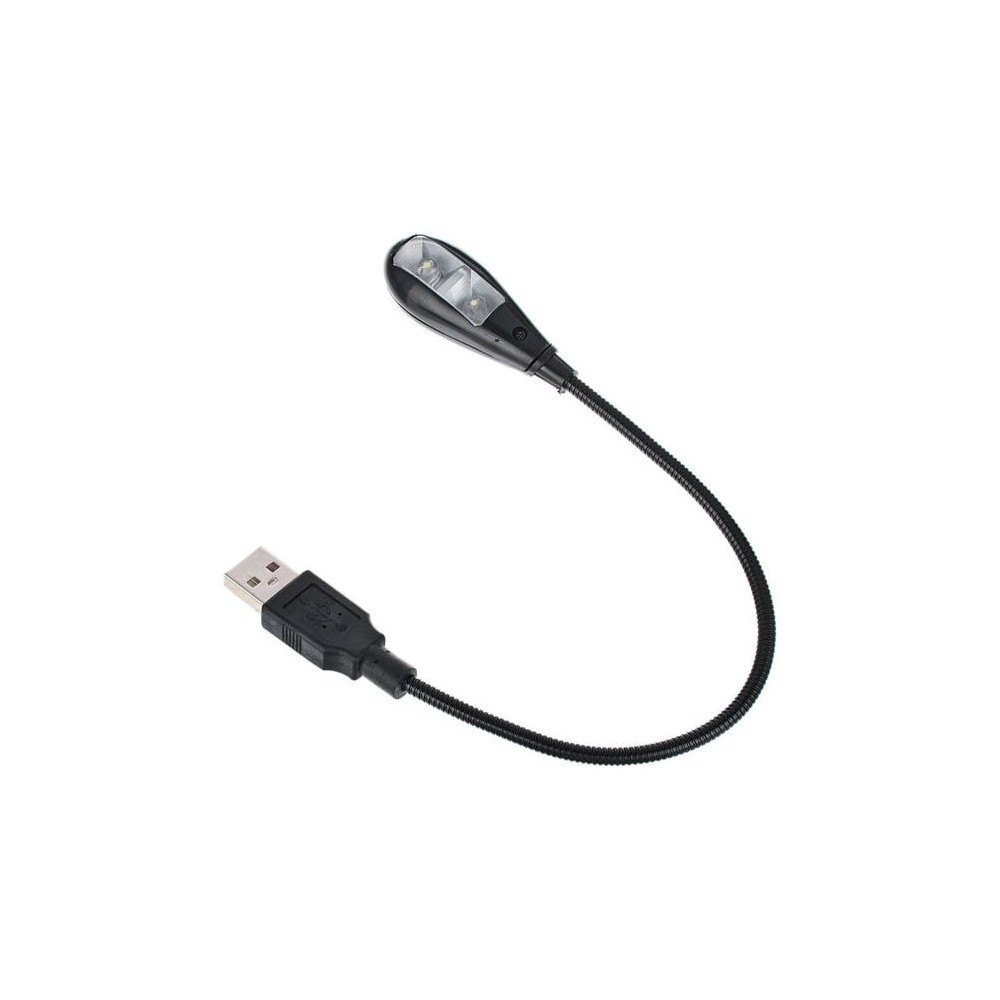

USB Gooseneck led light (included)
Protective cover (included)

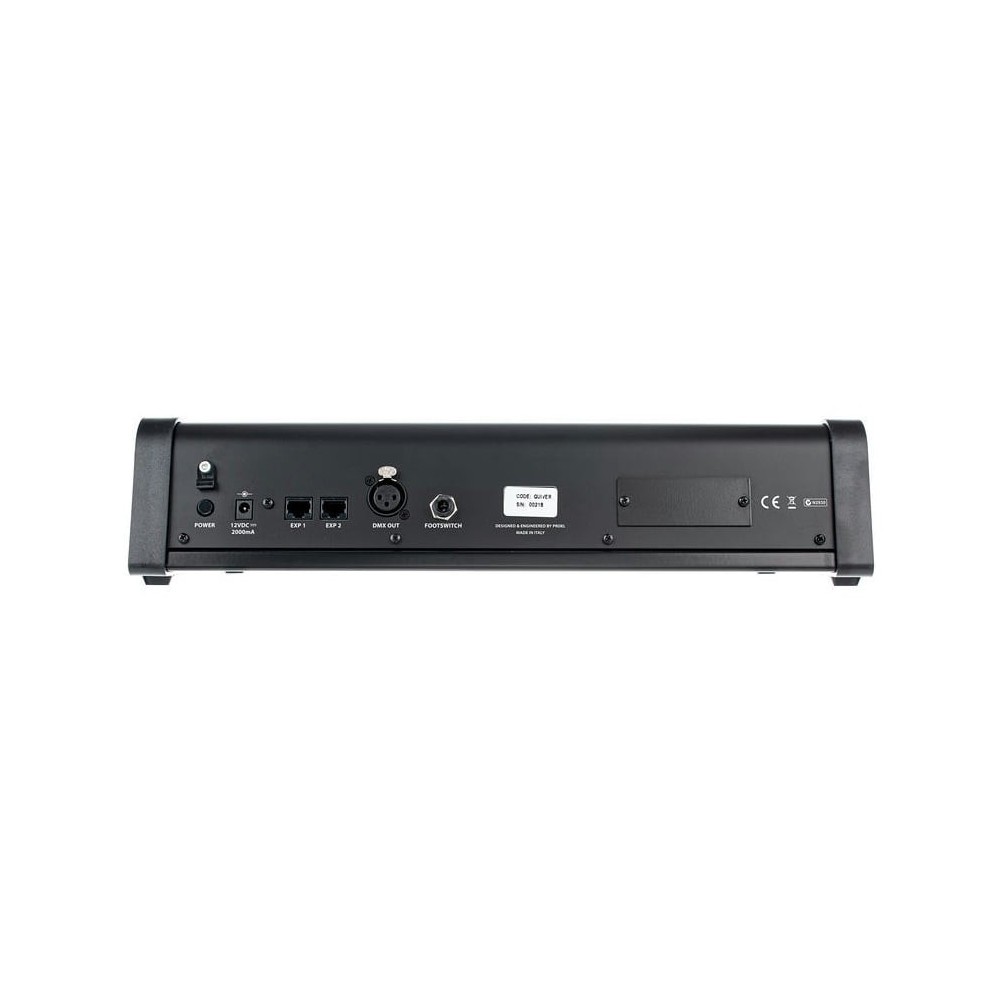

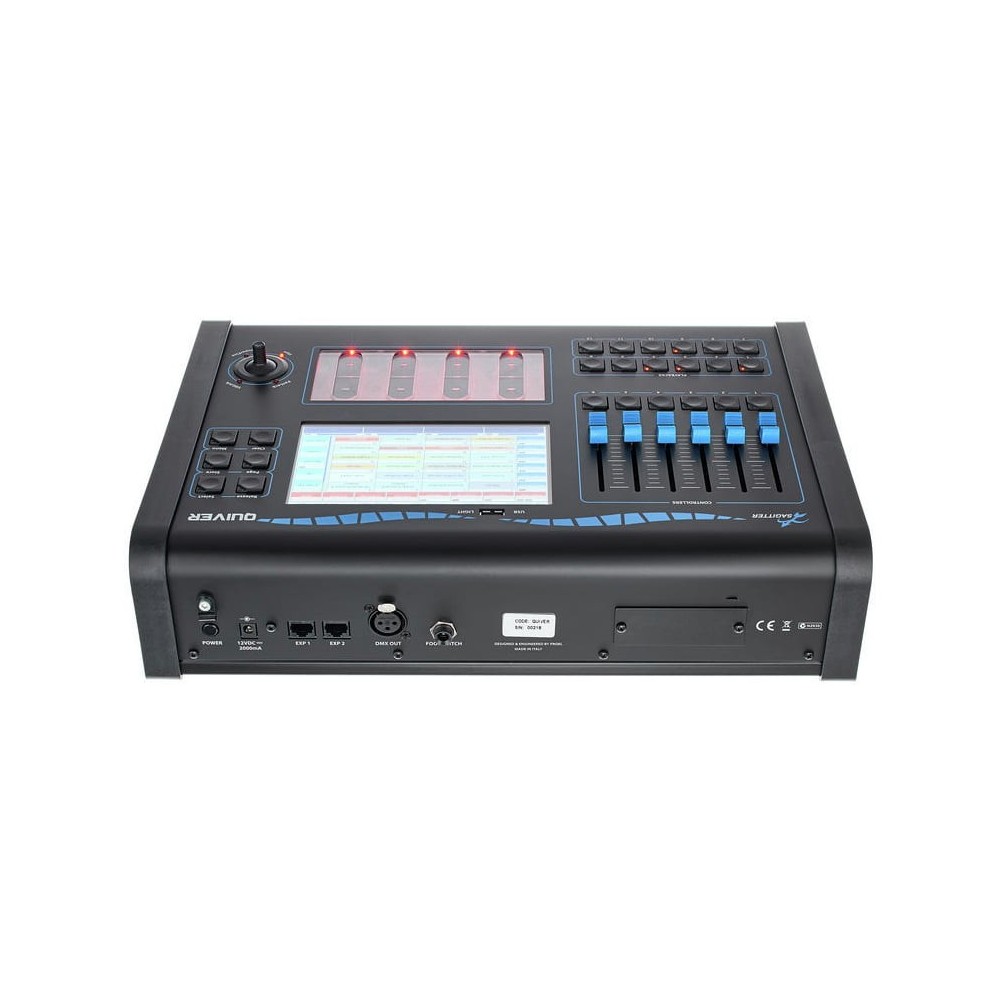

Connections
DMX out: 1x XLR 3 poles
Expand: 2x RJ45 for expansions connection
USB 1x port for backup, lamp power supply and update the fixture
Jack 6,3mm for connecting the pedals for controlling the gearbox scenes
